Radiusnocken / Radial cams
Radial Cams

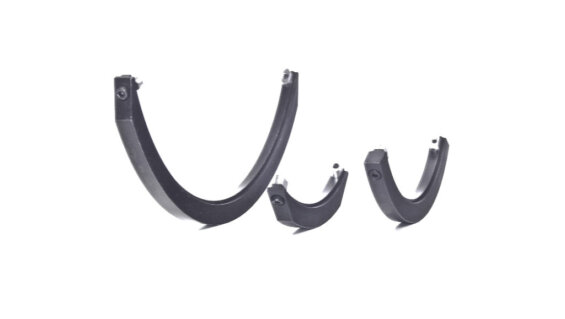

Radiusnocken werden aus gezogenen Stahlprofilen zum Profil-Radius passend gebogen. Als Nockenhöhe stehen wahlweise 12,5 mm, 14 mm und 16 mm zur Verfügung. Angeboten werden Radiusnocken für berührungslose Signalgabe (Initiator-Nocken) oder für mechanische Betätigung mit einer Anfahrschräge von 26 Grad 34′ nach DIN 69 639. Dies entspricht einer Steigung der Anfahrschräge des Nockens im Verhältnis 1:2 (2 mm Nockenverschiebung = 1 mm Stößelhub am Positionsschalter).
English description
Radial cams are bent to suit the profile radius from drawn steel profiles. Available cam height options are 12.5 mm, 14 mm and 16 mm. Radial cams are supplied for non-contact signalling (proximity cams) or for mechanical actuation with an approach angle of 26° 34′ to DIN 69639. This corresponds to an incline of the approach angle of the cam in the ratio 1: 2 (2 mm sliding of the cam = 1 mm slide stroke on the position switch).
